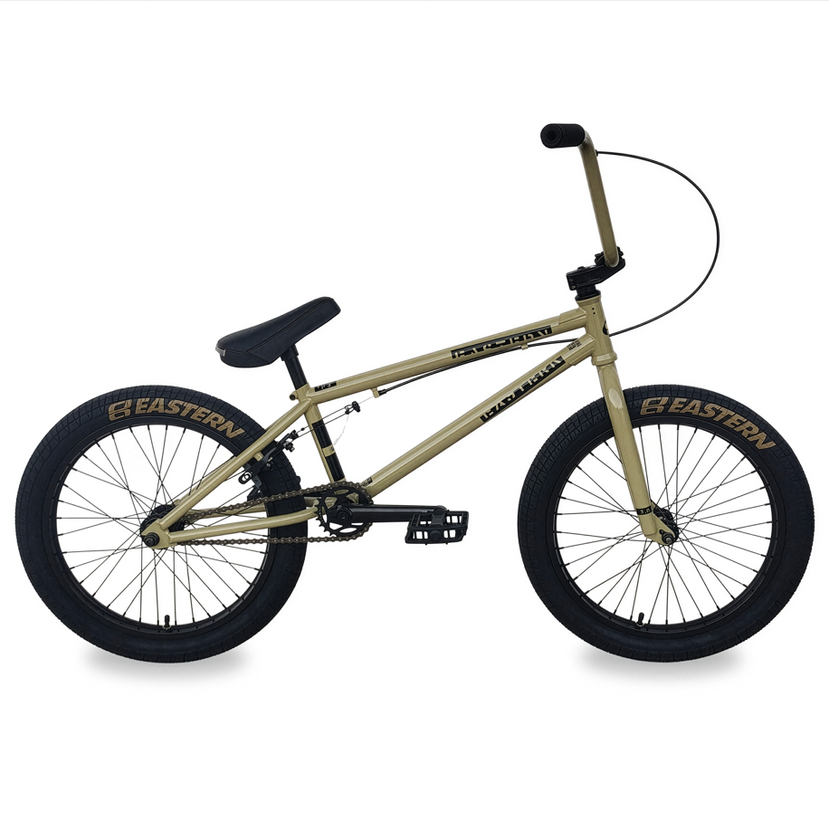

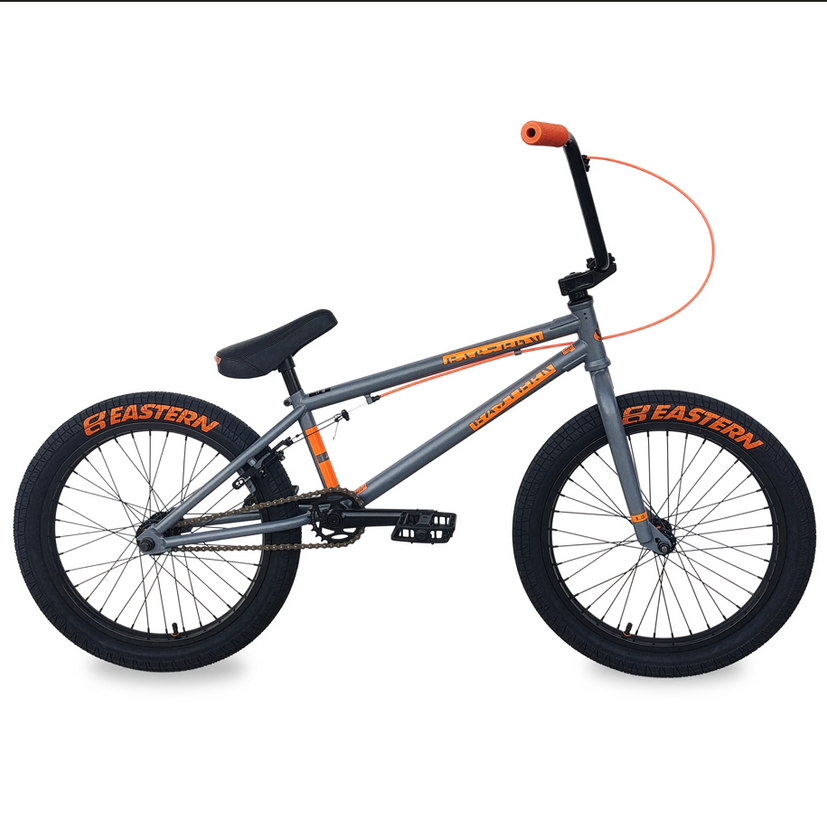

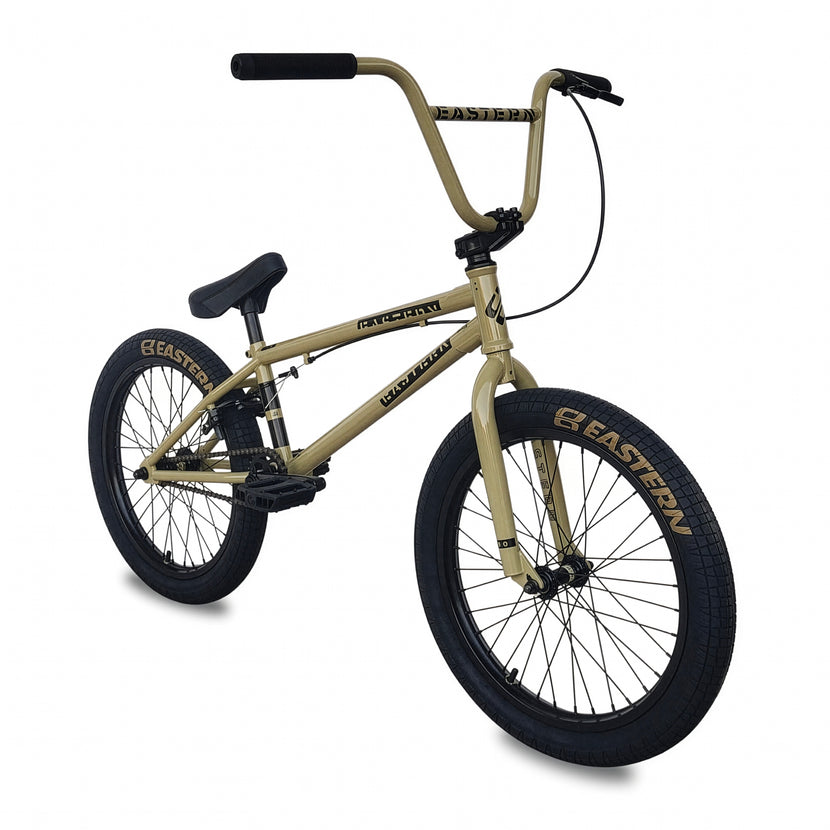

The Eastern 3.0 20" BMX Bike has a chromo downtube frame and cromo steerer fork! Designed for intermediate riders looking to upgrade from a steel frame. This awesome dirt jumper features: sealed bearing integrated headset, sealed front and rear hubs, a 3-piece chromoly cranks, Eastern grips, sprocket and double-wall rims.
Features
- Sealed Front & Rear Hubs
- 3pc Tubular Chromoly Cranks
- Sealed Mid Bottom Bracket
- Chromoly down tube Steel Frame
- Chromoly Steerer Tube
- Integrated Sealed Headset
- Eastern Riblet Grips
- Eastern Atom Pedals
- Eastern Sprocket
FRAME
Chromoloy Down Tube 20"
Top Tube Size: 20.5"
BB: Mid Sealed Bearing
Headtube: Integrated
Chainstay Length: 13.38"
Clamp: Integrated with Frame
Hi-Ten 8.27"
Upsweep/Backsweep 12⁰/1⁰
FORK
Chromoly steerer tube with Hi-tensile steel Tapered legs, 3/8" dropouts
Fork Rake: 28mm
HEADSET Integrated Sealed Cartridge Bearing
STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Atom Plastic Pedal with 9/16" Chromoly Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Grey Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Medium Width Seat/Post Combo
POST Comes with Seat
FRONT HUB Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Axle
REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Sealed Driver with Hub
FRONT RIM Eastern Double Wall, Drilled for 36 Spokes. For 20" Tyres
REAR RIM Eastern Double Wall, Drilled for 36 Spokes. For 20" Tyres
SPOKES 14 Gauge Stainless Steel with Brass Nipples
FRONT TYRE 20 x 2.40
REAR TYRE 20 x 2.40
Bikes are designed for riders 13 years old and up
* Specs & pricing Subject to Change
