2.0
2.0

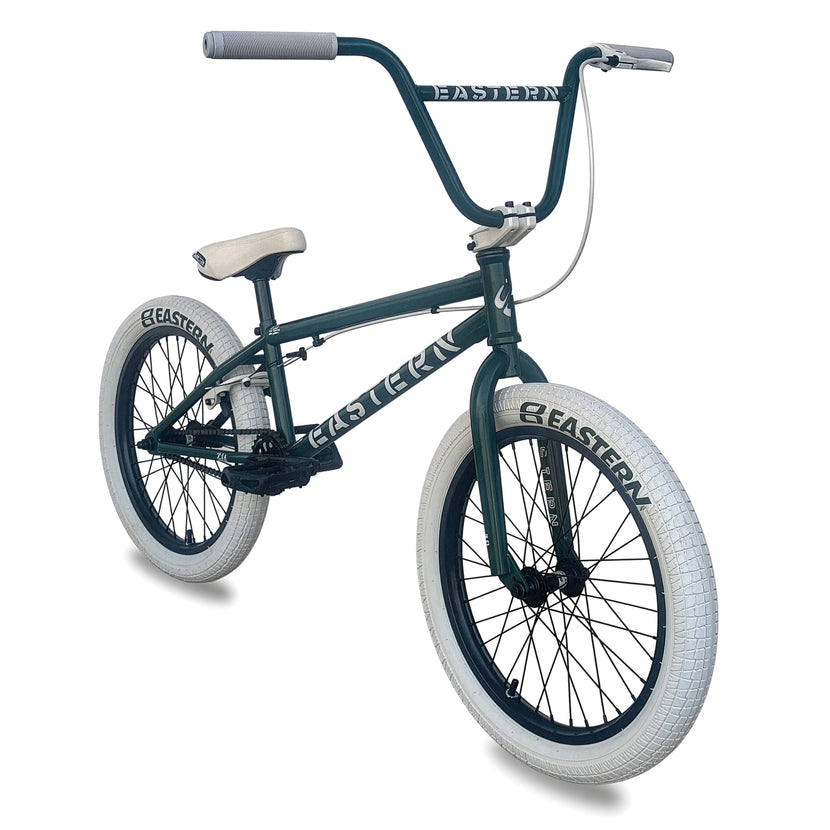

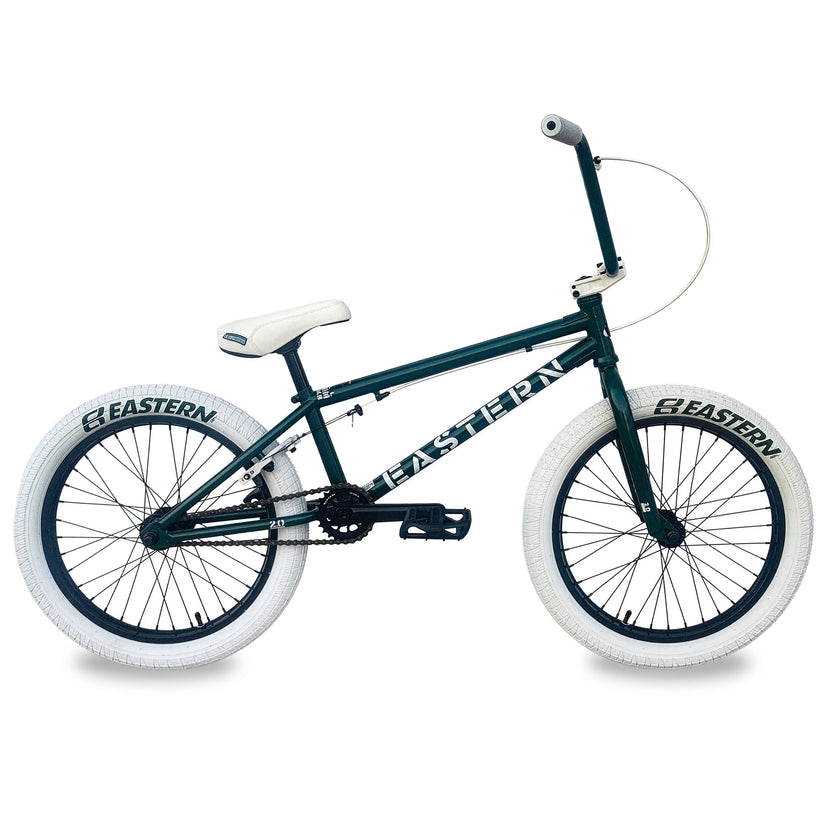

The Eastern 2.0 is a clean dirt jump bike built tough with a full chromo frame and our Facet pedals! Other features: sealed bearing integrated headset, sealed front and rear hubs, a 3-piece chromoly cranks, Eastern grips, alloy sprocket and a double-wall rear rims.
Features
- Sealed Front & Rear Hubs
- 3pc Tubular Chromoly Cranks
- Sealed Mid Bottom Bracket
- Full Chromoly Frame
- Chromoly Steerer Tube
- Integrated Sealed Headset
- Eastern Riblet Grips
- Eastern Atom Pedals
- Eastern Alloy Sprocket

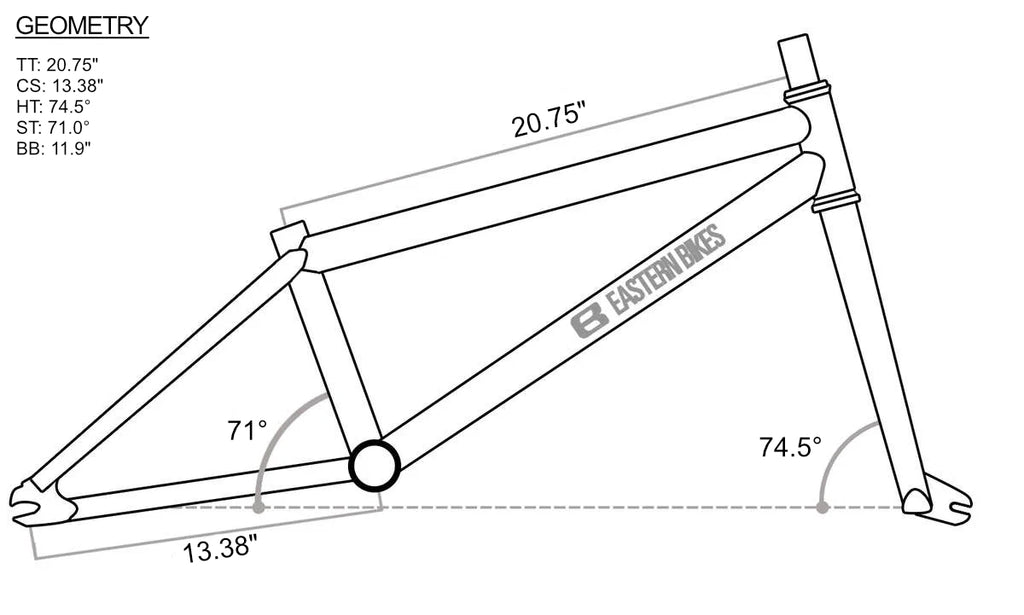

FRAME
Full Chromoloy 20"
Top Tube Size: 20.75"
BB: Mid Sealed Bearing
Headtube: Integrated
Chainstay Length: 13.38"
Clamp: Integrated with Frame
Hi-Ten 8.75"
Upsweep/Backsweep 12⁰/1⁰
FORK
Chromoly steerer tube with Hi-tensile steel Tapered legs, 3/8" dropouts
Fork Rake: 28mm
HEADSET Integrated Sealed Cartridge Bearing
STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Square Tapered Arm
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Shogun CNC'd Alloy, 25T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Facet Pedal with 9/16" Chromoly Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Grey Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Medium Width Pivotal Seat
POST Pivotal Alloy, 200mm
FRONT HUB Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Axle
REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Sealed Driver with Hub
FRONT RIM Eastern Double Wall, Drilled for 36 Spokes. For 20" Tyres
REAR RIM Eastern Double Wall, Drilled for 36 Spokes. For 20" Tyres
SPOKES 14 Gauge Stainless Steel with Brass Nipples
FRONT TYRE Eastern Throttle 20 x 2.40
REAR TYRE Eastern Throttle 20 x 2.40
PEG none
Bikes are designed for riders 13 years old and up
* Specs & pricing Subject to Change
